Metal tube Fiber laser cutting machine

It supports machining any complex curve figure on the round pipe surface, which is not limited by the difficulty of the figure.

Performance characteristics

1. It supports machining any complex curve figure on the round pipe surface, which is not limited by the difficulty of the figure.

2. Automatic pneumatic chuck, non-destructive pipe clamping, instant automatic centering clamping workpiece, while adjusting the size of the air pressure, ensure the clamping force is stable and reliable (thin wall pipe will not cause pipe deformation due to clamping claw).

3.  Automatic professional fiber laser pipe cutting machine operation software, can achieve simple operation, intelligent, automatic.

Application area

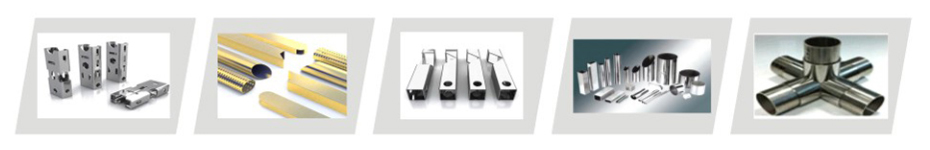

Used for cutting square pipe, round pipe, rectangle pipe, oval pipe, waist pipe, D pipe, hexagon pipe.



Technical Parameters

Model ZT-CP9035
Pipe size(mmxmm) Φ20x20～Φ180x180; □20-□130
Max pipe length(mm) 8500
Pipe weight(kg/m) <20
moving speed(m/min) 90
Positioning accuracy(mm) 0.05
Repeated positioning accuracy(mm) 0.03
Control display 24"LCD
laser power(W) 500～4000
Power requirements 380VAC±10%/50Hz/60Hz/60A
Machine weight 1500KG
Equipment size 5430x3800x1800
