1. Stable laser power output, easy to operate, ultra-long laser service life of 100,000 hours.
2. The marking speed is fast, high efficiency, can mark on the very small surface of the user requirements of all kinds of fine and complex patterns.
3. High electro-optical conversion rate, no pollution, no consumables, speed up the investment return of users in a short time.
4. The integration of the overall structure, compact size, easy to carry, save production space.

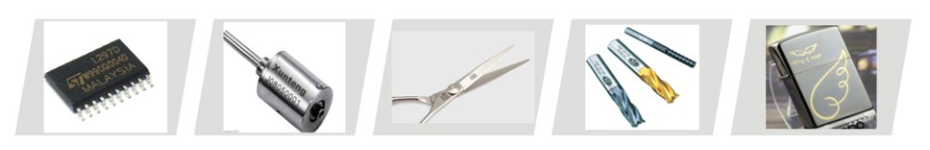

Widely used in electronic components, hardware tools products, electrical products, consumer goods, 3C electronics, process gifts, precision equipment, wearable jewelry, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields.
| Model | ZT-PMF20,ZT-PMF30,ZT-PMF50,ZT-PMF100 |
| laser power | 20W/30W/50W/100W |
| Wave length | 1064nm |
| Min.charaacter size | ≤0.4mm |
| Min.linear width | ≤0.1mm |
| Marking speed | ≤7000mm/s |
| Cooling way | air cooling |
| Machine weight | 35KG |
| Power consumption | 800W |
| Marking scope | 110m*110mm(optional) |
| Machine dimension | 750mm*210mm*545mm |
| Power requirements | 220V±10/50HZ/60HZ |
