1. 3D laser marking machine can solve 3D curved surface, spherical surface, step surface and other special-shaped surface products for laser marking
2. using 3 d software system algorithm and three-dimensional galvanometer, realize the autofocus, precision control in the plus or minus 0.02 ㎜
3. It can realize multi-level large-format marking, 3d product marking, or flat marking, with a wider range of use
4. Imported configuration, stable performance, no consumables, no pollution, low energy consumption, long service life

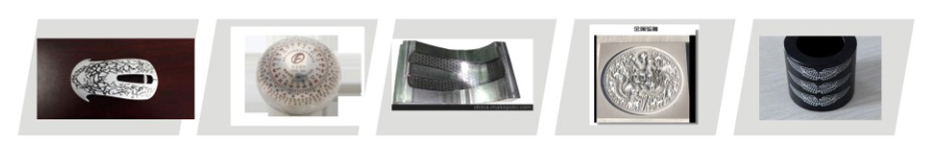

It is suitable for laser marking of all kinds of metal and non-metal products with 3d curved surface. Widely used in precision machinery, measuring tools, electrical appliances, three-dimensional circuits, hardware tools, electronic components, 3C electronics, mobile phone communication parts, auto parts, mold, plastic products, medical devices, building materials and other fields.
| Model | ZT-3D20,ZT-3D30,ZT-3D50,ZT-3D100 |
| laser power | 20W/30W/50W/100W |
| Wave length | 1064nm |
| Min.charaacter size | ≤0.4mm |
| Min.linear width | ≤0.1mm |
| Marking speed | ≤7000mm/s |
| Cooling way | air cooling |
| Machine weight | 80KG |
| Power consumption | 800W |
| Marking scope | 110m*110mm(optional) |
| Machine dimension | 650mm*935mm*1450mm |
| Power requirements | 220V±10/50HZ/60HZ |
Suzhou zonto laser technology Co., Ltd.
