1. Laser power output is stable,and light spot quality is good.
2. Quick marking and cutting speed at 2-3 times that of conventional machines.
3. There is no restriction in operation systems.It is convenient in operation,with fully closed light paths,so it is stable, reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
4. No pollution,no noise,and no consumable materials,with power consumption at 5%-10% of consumption by traditional machines.

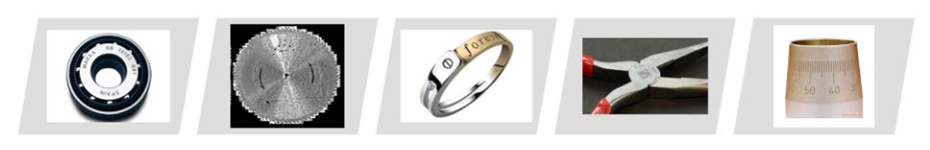

This kind of machine widely used in Mobile power mobile phone shells, rings, bracelets, mugs, glasses, watches, key, instrumentation, sanitary ware, home appliances, electronic components, integrated circuits (IC), the cell phone button, luggage buckles, cutlery, water faucet, stainless steel products, car accessories, cell phone chargers, cables and wires, and medical device E-cigarette industries.
| Model | ZT-MF20,ZT-MF30,ZT-MF50,ZT-MF100 |
| laser power | 20W/30W/50W/100W |
| Wave length | 1064nm |
| Min.charaacter size | ≤0.4mm |
| Min.linear width | ≤0.1mm |
| Marking speed | ≤7000mm/s |
| Cooling way | air cooling |
| Machine weight | 70KG |
| Power consumption | 800W |
| Marking scope | 110m*110mm(optional) |
| Machine dimension | 650mm*880mm*1450mm |
| Power requirements | 220V±10/50HZ/60HZ |
Suzhou zonto laser technology Co., Ltd.
