1. CCD camera monitoring system is selected to facilitate observation and accurate positioning.
2. welding spot energy distribution is uniform, with the welding characteristics of the best spot required
3. to adapt to all kinds of complicated weld, all kinds of spot welding device, and the weld within 1 ㎜ sheet.
4. Adopt imported ceramic concentrator, corrosion resistance, high temperature resistance, cavity life (8-10 years), pulse hernia lamp life is more than 8 million times
5. Customized automatic fixtures and fixtures can be used to realize mass production of products.

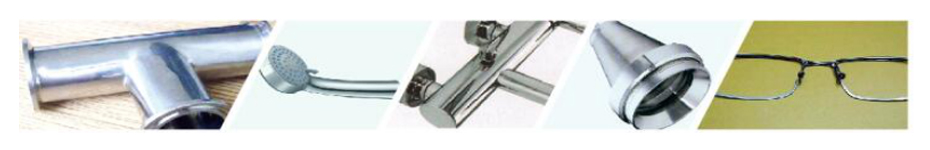

The machine is widely used in optical communication devices, IT, medical, electronics, batteries, optical fiber coupler parts, picture tube gun, metal parts, mobile phone vibration motor, clock precision parts, automotive lights and other precision welding.
| Model | ZT-SW150W/300W/600W |
| laser power | 200W/400W/600W |
| Wave length | 1064um |
| Cooling way | Water chiller |
| water temperature | 13-28℃ |
| Localization way | Red diode indicator (option ccd) |
| Welding depth | 0.05mm-3mm |
| Spot diameter | 0.3-2.0mm |
| Max pulse energy | 40J/60J/100J |
| Power consumption | 6.5KW |
| Power requirements | AC380V/±10%,50Hz |
| Equipment size | 1300mm×1130mm×660mm |
