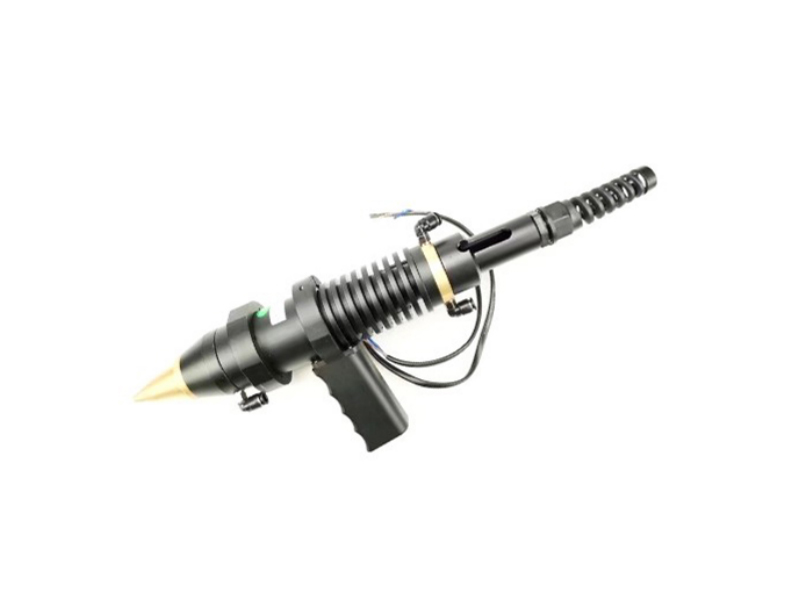

1. The hand-held welding head is equipped with five-meter imported optical fiber cable, which is flexible and convenient for outdoor welding.
2. hand-held welding gun operation mode, can achieve any part of any Angle of the workpiece welding.
3. Intelligent switching of dual-light path, even distribution of time-sharing and light-sharing energy.
4. Suitable for spot welding of various complex welds and devices
5. CCD camera monitoring system facilitates observation and accurate positioning.

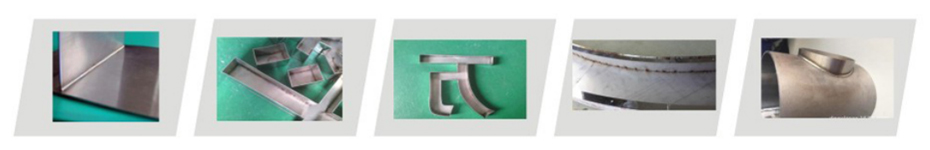

Widely used in kitchen industry, household appliance industry, advertising industry, mold industry, stainless steel doors and Windows industry, arts and crafts industry, home supplies industry, furniture industry, auto parts industry.
| Model | ZT-SW200W/400W/600W |
| laser power | 200W/400W/600W |
| Wave length | 1064nm |
| Cooling way | Water Cooling |
| water temperature | 13-28℃ |
| Localization way | Red diode indicator (option ccd) |
| Welding depth | 0.05mm-3mm |
| Spot diameter | 0.3-2.0mm |
| Max pulse energy | 60J/70J/100J |
| Power consumption | 6.5KW/14KW/18KW |
| Power requirements | AC380V/±10%,50Hz |
| Equipment size | 1300mm×1130mm×660mm |
